產品詳情
臥式單級單吸離心泵是在參照本公司IS系列立式離心泵基礎上改進設計而成，其性能參數等同于IS系列泵。并嚴格按照國際標準ISO2858和國家管道離心泵標準JB/T6878-2006進行設計制造。臥式離心泵水力模型，材料適用合理，整機性能更穩定，是IS型泵、ISG型泵的更新一代產品。
水泵流量范圍1.5~1200m3/H，水泵揚程范圍8~150m，分基本型、擴流型、A、B、C切割型等多種規格。根據流體介質和溫度不同，設計制造成同性能參數的ALWR型熱水泵、ALWH型化工泵、ALWY型油泵和ALWHY型臥式防爆化工泵系列產品。
工作條件
1、臥式單級離心泵系統最高工作壓力≤1.6Mpa，即吸入口壓力+泵揚程≤1.6Mpa、泵靜壓試驗壓力為2.5Mpa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6Mpa時應在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2、臥式單級離心泵環境溫度＜40℃，相對濕度＜95%。
3、臥式單級離心泵所輸送介質中固體顆粒體積含量不超過單位體積的0.1%,粒度＜0.2mm。
注：如使用介質為帶有細小顆粒，請?jiān)谟嗀洉r(shí)注明，以便廠家采用耐磨式機械密封。

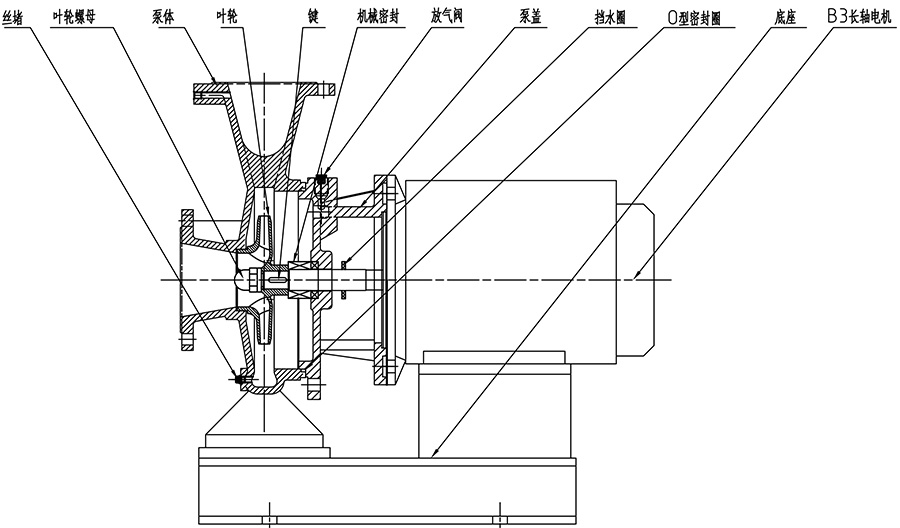

產品結構
產品規格
| 81 | 65-250A | 23.4 | 70 | 2900 | 11 |
| 82 | 65-250B | 21.6 | 60 | 2900 | 11 |
| 83 | 65-315 | 25 | 125 | 2900 | 30 |
| 84 | 65-315A | 23.7 | 113 | 2900 | 22 |
| 85 | 65-315B | 22.5 | 101 | 2900 | 18.5 |
| 86 | 65-315C | 20.6 | 85 | 2900 | 18.5 |
| 87 | 65-100(I) | 50 | 12.5 | 2900 | 3 |
| 88 | 65-100(I)A | 44.7 | 10 | 2900 | 2.2 |
| 89 | 65-125(I) | 50 | 20 | 2900 | 5.5 |
| 90 | 65-125(I)A | 45 | 16 | 2900 | 4 |
| 91 | 65-160(I) | 50 | 32 | 2900 | 7.5 |
| 92 | 65-160(I)A | 46.7 | 28 | 2900 | 7.5 |
| 93 | 65-160(I)B | 43.3 | 24 | 2900 | 5.5 |
| 94 | 65-200(I) | 50 | 50 | 2900 | 15 |
| 95 | 65-200(I)A | 47 | 44 | 2900 | 11 |
| 96 | 65-200(I)B | 43.5 | 38 | 2900 | 7.5 |
| 97 | 65-250(I) | 50 | 80 | 2900 | 22 |
| 98 | 65-250(I)A | 46.7 | 70 | 2900 | 18.5 |
| 99 | 65-250(I)B | 43.3 | 60 | 2900 | 15 |
| 100 | 65-315(I) | 50 | 125 | 2900 | 37 |
| 101 | 65-315(I)A | 46.5 | 110 | 2900 | 30 |
| 102 | 65-315(I)B | 44.5 | 100 | 2900 | 30 |
| 103 | 65-315(I)C | 41 | 85 | 2900 | 22 |
| 104 | 80-100 | 50 | 12.5 | 2900 | 3 |
| 105 | 80-100A | 44.7 | 10 | 2900 | 2.2 |
| 106 | 80-125 | 50 | 20 | 2900 | 5.5 |
| 107 | 80-125A | 45 | 16 | 2900 | 4 |
| 108 | 80-160 | 50 | 32 | 2900 | 7.5 |
| 109 | 80-160A | 46.7 | 28 | 2900 | 7.5 |
| 110 | 80-160B | 43.3 | 24 | 2900 | 5.5 |
| 111 | 80-200 | 50 | 50 | 2900 | 15 |
| 112 | 80-200A | 47 | 44 | 2900 | 11 |
| 113 | 80-200B | 43.5 | 38 | 2900 | 7.5 |
| 114 | 80-250 | 50 | 80 | 2900 | 22 |
| 115 | 80-250A | 46.7 | 70 | 2900 | 18.5 |
| 116 | 80-250B | 43.3 | 60 | 2900 | 15 |
| 117 | 80-315 | 50 | 125 | 2900 | 37 |
| 118 | 80-315A | 46.5 | 110 | 2900 | 30 |
| 119 | 80-315B | 44.5 | 100 | 2900 | 30 |
| 120 | 80-315C | 41 | 85 | 2900 | 22 |
| 121 | 80-350 | 50 | 150 | 2900 | 55 |
| 122 | 80-350A | 44 | 142 | 2900 | 45 |
| 123 | 80-350B | 40 | 135 | 2900 | 37 |
| 124 | 80-100(I) | 100 | 12.5 | 2900 | 5.5 |
| 125 | 80-100(I)A | 89 | 10 | 2900 | 4 |
| 126 | 80-125(I) | 100 | 20 | 2900 | 11 |
| 127 | 80-125(I)A | 89 | 16 | 2900 | 7.5 |
| 128 | 80-160(I) | 100 | 32 | 2900 | 15 |
| 129 | 80-160(I)A | 93.5 | 28 | 2900 | 11 |
| 130 | 80-160(I)B | 86.6 | 24 | 2900 | 11 |
| 131 | 80-200(I) | 100 | 50 | 2900 | 22 |
| 132 | 80-200(I)A | 93.5 | 44 | 2900 | 18.5 |
| 133 | 80-200(I)B | 87 | 38 | 2900 | 15 |
| 134 | 80-250(I) | 100 | 80 | 2900 | 37 |
| 135 | 80-250(I)A | 93.5 | 70 | 2900 | 30 |
| 136 | 80-250(I)B | 87 | 60 | 2900 | 30 |
| 137 | 80-315(I) | 100 | 125 | 2900 | 75 |
| 138 | 80-315(I)A | 95 | 113 | 2900 | 55 |
| 139 | 80-315(I)B | 90 | 101 | 2900 | 45 |
| 140 | 80-315(I)C | 82 | 85 | 2900 | 37 |
| 141 | 100-100 | 100 | 12.5 | 2900 | 5.5 |
| 142 | 100-100A | 89 | 10 | 2900 | 4 |
| 143 | 100-125 | 100 | 20 | 2900 | 11 |
| 144 | 100-125A | 89 | 16 | 2900 | 7.5 |
| 145 | 100-160 | 100 | 32 | 2900 | 15 |
| 146 | 100-160A | 93.5 | 28 | 2900 | 11 |
| 147 | 100-160B | 86.6 | 24 | 2900 | 11 |
| 148 | 100-200 | 100 | 50 | 2900 | 22 |
| 149 | 100-200A | 93.5 | 44 | 2900 | 18.5 |
| 150 | 100-200B | 87 | 38 | 2900 | 15 |
| 151 | 100-250 | 100 | 80 | 2900 | 37 |
| 152 | 100-250A | 93.5 | 70 | 2900 | 30 |
| 153 | 100-250B | 87 | 60 | 2900 | 30 |
| 154 | 100-315 | 100 | 125 | 2900 | 75 |
| 155 | 100-315A | 95 | 113 | 2900 | 55 |
| 156 | 100-315B | 90 | 101 | 2900 | 45 |
| 157 | 100-315C | 82 | 85 | 2900 | 37 |
| 158 | 100-350 | 100 | 150 | 2900 | 90 |
| 159 | 100-350A | 87 | 142 | 2900 | 75 |
| 160 | 100-350B | 82 | 135 | 2900 | 55 |
| 161 | 100-100(I) | 160 | 12.5 | 2900 | 11 |
| 162 | 100-125(I) | 160 | 20 | 2900 | 15 |
| 163 | 100-125(I)A | 140 | 17 | 2900 | 11 |
| 164 | 100-160(I) | 160 | 32 | 2900 | 22 |
| 165 | 100-160(I)A | 140 | 28 | 2900 | 18.5 |
| 166 | 100-200(I) | 160 | 50 | 2900 | 37 |
| 167 | 100-200(I)A | 140 | 45 | 2900 | 30 |
| 168 | 100-200(I)B | 100 | 40 | 2900 | 22 |
| 169 | 100-250(I) | 160 | 80 | 2900 | 55 |
| 170 | 100-250(I)A | 140 | 72 | 2900 | 45 |
| 171 | 100-250(I)B | 100 | 65 | 2900 | 37 |
| 172 | 125-100 | 160 | 12.5 | 2900 | 11 |
| 173 | 125-100A | 143 | 10 | 2900 | 7.5 |
| 174 | 125-125 | 160 | 20 | 2900 | 15 |
| 175 | 125-125A | 143 | 16 | 2900 | 11 |
| 176 | 125-160 | 160 | 32 | 2900 | 22 |
| 177 | 125-160A | 150 | 28 | 2900 | 18.5 |
| 178 | 125-160B | 138 | 24 | 2900 | 15 |
| 179 | 125-200 | 160 | 50 | 2900 | 37 |
| 180 | 125-200A | 150 | 44 | 2900 | 30 |
| 181 | 125-200B | 138 | 37.5 | 2900 | 22 |
| 182 | 125-250 | 160 | 80 | 2900 | 55 |
| 183 | 125-250A | 150 | 70 | 2900 | 45 |
| 184 | 125-250B | 138 | 60 | 2900 | 37 |
| 185 | 125-315 | 160 | 125 | 2900 | 90 |
| 186 | 125-315A | 150 | 110 | 2900 | 75 |
| 187 | 125-315B | 143 | 100 | 2900 | 75 |
| 188 | 125-315C | 134 | 88 | 2900 | 55 |
| 189 | 150-125 | 160 | 20 | 2900 | 15 |
| 190 | 150-125A | 150 | 16 | 2900 | 11 |
| 191 | 150-160 | 160 | 32 | 2900 | 22 |
| 192 | 150-160A | 150 | 28 | 2900 | 18.5 |
| 193 | 150-160B | 140 | 24 | 2900 | 15 |
| 194 | 150-200 | 160 | 50 | 2900 | 37 |
| 195 | 150-200A | 150 | 44 | 2900 | 30 |
| 196 | 150-200B | 138 | 37.5 | 2900 | 22 |
| 197 | 150-250 | 200 | 80 | 2900 | 75 |
| 198 | 150-250A | 184.4 | 70 | 2900 | 55 |
| 199 | 150-250B | 167 | 60 | 2900 | 45 |
| 200 | 150-315 | 200 | 125 | 2900 | 110 |
| 201 | 150-315A | 187 | 110 | 2900 | 90 |
| 202 | 150-315B | 173 | 95 | 2900 | 75 |
| 203 | 150-350 | 160 | 150 | 2900 | 110 |
| 204 | 150-350A | 150 | 142 | 2900 | 90 |
| 205 | 150-350B | 140 | 101 | 2900 | 75 |
| 206 | 150-250(I) | 200 | 80 | 2900 | 75 |
| 207 | 150-250(I)A | 187 | 70 | 2900 | 55 |
| 208 | 150-250(I)B | 173 | 60 | 2900 | 45 |
| 209 | 150-315(I) | 200 | 125 | 2900 | 110 |
| 210 | 150-315(I)A | 187 | 110 | 2900 | 90 |
| 211 | 150-315(I)B | 173 | 95 | 2900 | 75 |
| 212 | 40-200 | 3.2 | 12.5 | 1450 | 0.75 |
| 213 | 40-250 | 3.2 | 20 | 1450 | 1.1 |
| 214 | 40-250A | 3 | 17.5 | 1450 | 0.75 |
| 215 | 40-250B | 2.8 | 15 | 1450 | 0.75 |
| 216 | 40-160(I) | 6.3 | 8 | 1450 | 0.75 |
| 217 | 40-200(I) | 6.3 | 12.5 | 1450 | 0.75 |
| 218 | 40-200(I)A | 5.5 | 9.5 | 1450 | 0.75 |
| 219 | 40-250(I) | 6.3 | 20 | 1450 | 1.5 |
| 220 | 40-250(I)A | 5.8 | 17.5 | 1450 | 1.1 |
| 221 | 40-250(I)B | 5.4 | 15 | 1450 | 0.75 |
| 222 | 50-160 | 6.3 | 8 | 1450 | 0.75 |
| 223 | 50-200 | 6.3 | 12.5 | 1450 | 0.75 |
| 224 | 50-200A | 5.5 | 9.5 | 1450 | 0.75 |
| 225 | 50-250 | 6.3 | 20 | 1450 | 1.5 |
| 226 | 50-250A | 5.8 | 17.5 | 1450 | 1.1 |
| 227 | 50-250B | 5.4 | 15 | 1450 | 0.75 |
| 228 | 50-125(I) | 12.5 | 5 | 1450 | 0.75 |
| 229 | 50-160(I) | 12.5 | 8 | 1450 | 0.75 |
| 230 | 50-160(I)A | 10.8 | 6 | 1450 | 0.75 |
| 231 | 50-200(I) | 12.5 | 12.5 | 1450 | 1.1 |
| 232 | 50-200(I)A | 11.8 | 11 | 1450 | 0.75 |
| 233 | 50-250(I) | 12.5 | 20 | 1450 | 2.2 |
| 234 | 50-250(I)A | 11.7 | 17.6 | 1450 | 1.5 |
| 235 | 50-250(I)B | 10.8 | 15 | 1450 | 1.1 |
| 236 | 50-315(I) | 12.5 | 32 | 1450 | 4 |
| 237 | 50-315(I)A | 11.7 | 28 | 1450 | 4 |
| 238 | 50-315(I)B | 11.3 | 25 | 1450 | 3 |
| 239 | 65-125 | 12.5 | 5 | 1450 | 0.75 |
| 240 | 65-160 | 12.5 | 8 | 1450 | 0.75 |
| 241 | 65-160A | 10.8 | 6 | 1450 | 0.75 |
| 242 | 65-200 | 12.5 | 12.5 | 1450 | 1.1 |
| 243 | 65-200A | 11.8 | 11 | 1450 | 0.75 |
| 244 | 65-250 | 12.5 | 20 | 1450 | 2.2 |
| 245 | 65-250A | 11.7 | 17.6 | 1450 | 1.5 |
| 246 | 65-250B | 10.2 | 15 | 1450 | 1.1 |
| 247 | 65-315 | 12.5 | 32 | 1450 | 4 |
| 248 | 65-315A | 11.7 | 28 | 1450 | 4 |
| 249 | 65-315B | 10.1 | 21 | 1450 | 3 |
| 250 | 65-100(I) | 25 | 3 | 1450 | 0.75 |
| 251 | 65-125(I) | 25 | 5 | 1450 | 0.75 |
| 252 | 65-125(I)A | 21.8 | 3.8 | 1450 | 0.75 |
| 253 | 65-160(I) | 25 | 8 | 1450 | 1.1 |
| 254 | 65-160(I)A | 21.6 | 6 | 1450 | 0.75 |
| 255 | 65-200(I) | 25 | 12.5 | 1450 | 2.2 |
| 256 | 65-200(I)A | 23.3 | 11 | 1450 | 1.5 |
| 257 | 65-250(I) | 25 | 20 | 1450 | 3 |
| 258 | 65-250(I)A | 23.4 | 17.5 | 1450 | 3 |
| 259 | 65-250(I)B | 21.7 | 15 | 1450 | 2.2 |
| 260 | 65-315(I) | 25 | 32 | 1450 | 5.5 |
| 261 | 65-315(I)A | 23 | 27.9 | 1450 | 4 |
| 262 | 65-315(I)B | 20.2 | 21 | 1450 | 4 |
| 263 | 80-100 | 25 | 3 | 1450 | 0.75 |
| 264 | 80-125 | 25 | 5 | 1450 | 0.75 |
| 265 | 80-125A | 21.8 | 3.8 | 1450 | 0.75 |
| 266 | 80-160 | 25 | 8 | 1450 | 1.1 |
| 267 | 80-160A | 21.6 | 6 | 1450 | 0.75 |
| 268 | 80-200 | 25 | 12.5 | 1450 | 2.2 |
| 269 | 80-200A | 23.3 | 10.9 | 1450 | 1.5 |
| 270 | 80-250 | 25 | 20 | 1450 | 3 |
| 271 | 80-250A | 23 | 17.5 | 1450 | 3 |
| 272 | 80-250B | 21.7 | 15 | 1450 | 2.2 |
| 273 | 80-315 | 25 | 32 | 1450 | 5.5 |
| 274 | 80-315A | 23 | 27.9 | 1450 | 4 |
| 275 | 80-315B | 22.3 | 25 | 1450 | 4 |
| 276 | 80-100(I) | 50 | 3 | 1450 | 0.75 |
| 277 | 80-125(I) | 50 | 5 | 1450 | 1.5 |
| 278 | 80-125(I)A | 44.6 | 4 | 1450 | 1.1 |
| 279 | 80-160(I) | 50 | 8 | 1450 | 2.2 |
| 280 | 80-160(I)A | 46.8 | 7 | 1450 | 1.5 |
| 281 | 80-200(I) | 50 | 12.5 | 1450 | 3 |
| 282 | 80-200(I)A | 46.8 | 11 | 1450 | 3 |
| 283 | 80-250(I) | 50 | 20 | 1450 | 5.5 |
| 284 | 80-250(I)A | 46.7 | 17.4 | 1450 | 4 |
| 285 | 80-250(I)B | 43.5 | 15 | 1450 | 3 |
| 286 | 80-315(I) | 50 | 32 | 1450 | 11 |
| 287 | 80-315(I)A | 46.7 | 27.9 | 1450 | 7.5 |
| 288 | 80-315(I)B | 40.5 | 21 | 1450 | 5.5 |
| 289 | 100-100 | 50 | 3 | 1450 | 0.75 |
| 290 | 100-125 | 50 | 5 | 1450 | 1.1 |
| 291 | 100-125A | 44.6 | 4 | 1450 | 1.1 |
| 292 | 100-160 | 50 | 8 | 1450 | 2.2 |
| 293 | 100-160A | 46.8 | 7 | 1450 | 1.5 |
| 294 | 100-200 | 50 | 12.5 | 1450 | 3 |
| 295 | 100-200A | 46.8 | 11 | 1450 | 3 |
| 296 | 100-250 | 50 | 20 | 1450 | 5.5 |
| 297 | 100-250A | 46.7 | 17.4 | 1450 | 4 |
| 298 | 100-250B | 43.5 | 15 | 1450 | 3 |
| 299 | 100-315 | 50 | 32 | 1450 | 11 |
| 300 | 100-315A | 46.7 | 27.9 | 1450 | 7.5 |
| 301 | 100-315B | 40.5 | 21 | 1450 | 5.5 |
| 302 | 100-125(I) | 100 | 5 | 1450 | 2.2 |
| 303 | 100-125(I)A | 87.1 | 3.8 | 1450 | 1.5 |
| 304 | 100-160(I) | 100 | 8 | 1450 | 4 |
| 305 | 100-160(I)A | 87.1 | 6.3 | 1450 | 3 |
| 306 | 100-200(I) | 100 | 12.5 | 1450 | 5.5 |
| 307 | 100-200(I)A | 86 | 9.3 | 1450 | 4 |
| 308 | 100-250(I) | 100 | 20 | 1450 | 11 |
| 309 | 100-250(I)A | 93.3 | 17.4 | 1450 | 7.5 |
| 310 | 100-250(I)B | 87 | 15 | 1450 | 5.5 |
| 311 | 100-315(I) | 100 | 32 | 1450 | 15 |
| 312 | 100-315(I)A | 91 | 27.5 | 1450 | 11 |
| 313 | 100-315(I)B | 72 | 25 | 1450 | 11 |
| 314 | 100-400(I) | 100 | 50 | 1450 | 30 |
| 315 | 100-400(I)A | 94 | 44 | 1450 | 22 |
| 316 | 100-400(I)B | 87 | 38 | 1450 | 18.5 |
| 317 | 100-400(I)C | 81 | 32.8 | 1450 | 15 |
| 318 | 125-125 | 80 | 5 | 1450 | 2.2 |
| 319 | 125-125A | 71.5 | 4 | 1450 | 1.5 |
| 320 | 125-160 | 80 | 8 | 1450 | 3 |
| 321 | 125-160A | 69.3 | 6 | 1450 | 2.2 |
| 322 | 125-200 | 80 | 12.5 | 1450 | 5.5 |
| 323 | 125-200A | 75 | 11 | 1450 | 4 |
| 324 | 125-250 | 80 | 20 | 1450 | 7.5 |
| 325 | 125-250A | 75 | 17.5 | 1450 | 7.5 |
| 326 | 125-250B | 69 | 15 | 1450 | 5.5 |
| 327 | 125-315 | 80 | 32 | 1450 | 15 |
| 328 | 125-315A | 75 | 27.5 | 1450 | 11 |
| 329 | 125-315B | 72 | 25 | 1450 | 11 |
| 330 | 125-400 | 100 | 50 | 1450 | 30 |
| 331 | 125-400A | 94 | 44 | 1450 | 22 |
| 332 | 125-400B | 87 | 37.5 | 1450 | 18.5 |
| 333 | 150-200 | 160 | 12.5 | 1450 | 11 |
| 334 | 150-200A | 147 | 10 | 1450 | 7.5 |
| 335 | 150-250 | 160 | 20 | 1450 | 15 |
| 336 | 150-250A | 147 | 17 | 1450 | 11 |
| 337 | 150-250B | 134 | 14 | 1450 | 11 |
| 338 | 150-315 | 160 | 32 | 1450 | 22 |
| 339 | 150-315A | 150 | 28 | 1450 | 18.5 |
| 340 | 150-315B | 138 | 24 | 1450 | 15 |
| 341 | 150-400 | 160 | 50 | 1450 | 37 |
| 342 | 150-400A | 150 | 44 | 1450 | 30 |
| 343 | 150-400B | 138 | 38 | 1450 | 30 |
| 344 | 150-400C | 125 | 32 | 1450 | 22 |
| 345 | 150-200(I) | 200 | 12.5 | 1450 | 15 |
| 346 | 150-200(I)A | 179 | 10 | 1450 | 11 |
| 347 | 150-250(I) | 200 | 20 | 1450 | 18.5 |
| 348 | 150-250(I)A | 187 | 17.5 | 1450 | 15 |
| 349 | 150-250(I)B | 173 | 14 | 1450 | 11 |
| 350 | 150-315(I) | 200 | 32 | 1450 | 30 |
| 351 | 150-315(I)A | 187 | 28 | 1450 | 22 |
| 352 | 150-315(I)B | 173 | 24 | 1450 | 18.5 |
| 353 | 150-400(I) | 200 | 50 | 1450 | 45 |
| 354 | 150-400(I)A | 187 | 44 | 1450 | 37 |
| 355 | 150-400(I)B | 173 | 37.5 | 1450 | 30 |
| 356 | 150-400(I)C | 160 | 32 | 1450 | 22 |
| 357 | 200-200 | 200 | 12.5 | 1450 | 15 |
| 358 | 200-200A | 179 | 10 | 1450 | 11 |
| 359 | 200-250 | 200 | 20 | 1450 | 18.5 |
| 360 | 200-250A | 184.4 | 17 | 1450 | 15 |
| 361 | 200-250B | 167 | 14 | 1450 | 11 |
| 362 | 200-315 | 200 | 32 | 1450 | 30 |
| 363 | 200-315A | 189 | 28 | 1450 | 22 |
| 364 | 200-315B | 173 | 24 | 1450 | 18.5 |
| 365 | 200-400 | 200 | 50 | 1450 | 45 |
| 366 | 200-400A | 187 | 44 | 1450 | 37 |
| 367 | 200-400B | 174 | 38 | 1450 | 30 |
| 368 | 200-400C | 160 | 32 | 1450 | 22 |
| 369 | 200-500 | 320 | 80 | 1450 | 110 |
| 370 | 200-500A | 300 | 70 | 1450 | 90 |
| 371 | 200-500B | 277 | 60 | 1450 | 75 |
| 372 | 200-500C | 253 | 50 | 1450 | 55 |
| 373 | 200-250(I) | 400 | 20 | 1450 | 30 |
| 374 | 200-250(I)A | 358 | 16 | 1450 | 22 |
| 375 | 200-250(I)B | 322 | 13 | 1450 | 18.5 |
| 376 | 200-315(I) | 400 | 32 | 1450 | 55 |
| 377 | 200-315(I)A | 374 | 28 | 1450 | 45 |
| 378 | 200-315(I)B | 346 | 24 | 1450 | 37 |
| 379 | 200-400(I) | 400 | 50 | 1450 | 75 |
| 380 | 200-400(I)A | 374 | 44 | 1450 | 75 |
| 381 | 200-400(I)B | 346 | 38 | 1450 | 55 |
| 382 | 200-400(I)C | 320 | 32 | 1450 | 45 |
| 383 | 200-500（I） | 400 | 80 | 1450 | 132 |
| 384 | 200-500（I）A | 374 | 70 | 1450 | 110 |
| 385 | 200-500（I）B | 346 | 60 | 1450 | 90 |
| 386 | 200-500（I）C | 320 | 50 | 1450 | 75 |
| 387 | 250-250 | 550 | 20 | 1450 | 45 |
| 388 | 250-250A | 500 | 17 | 1450 | 37 |
| 389 | 250-300 | 500 | 20 | 1450 | 37 |
| 390 | 250-315 | 550 | 32 | 1450 | 75 |
| 391 | 250-315A | 500 | 28 | 1450 | 55 |
| 392 | 250-315B | 450 | 24 | 1450 | 45 |
| 393 | 250-400 | 550 | 50 | 1450 | 110 |
| 394 | 250-400A | 515 | 44 | 1450 | 90 |
| 395 | 250-400B | 450 | 37.5 | 1450 | 75 |
| 396 | 250-500 | 550 | 80 | 1450 | 200 |
| 397 | 250-500A | 506 | 71 | 1450 | 160 |
| 398 | 250-500B | 466 | 63.5 | 1450 | 132 |
| 399 | 300-250 | 720 | 20 | 1450 | 55 |
| 400 | 300-250A | 600 | 17 | 1450 | 45 |
| 401 | 300-300 | 720 | 28 | 1450 | 75 |
| 402 | 300-300A | 600 | 24 | 1450 | 75 |
| 403 | 300-300B | 540 | 21 | 1450 | 55 |
| 404 | 300-315 | 720 | 32 | 1450 | 90 |
| 405 | 300-315A | 650 | 28 | 1450 | 75 |
| 406 | 300-315B | 580 | 24 | 1450 | 55 |
| 407 | 300-400 | 720 | 50 | 1450 | 132 |
| 408 | 300-400A | 600 | 44 | 1450 | 110 |
| 409 | 300-500 | 720 | 80 | 1450 | 250 |
| 410 | 300-500A | 675 | 70 | 1450 | 200 |
| 411 | 300-500B | 625 | 60 | 1450 | 160 |
| 412 | 350-250 | 800 | 20 | 1450 | 75 |
| 413 | 350-315 | 800 | 32 | 1450 | 90 |
| 414 | 350-315A | 748 | 28 | 1450 | 75 |
| 說明：以上不銹鋼材質為201不銹鋼，如需304、316材質需另行報價。 | |||||
掃二維碼手機查看
